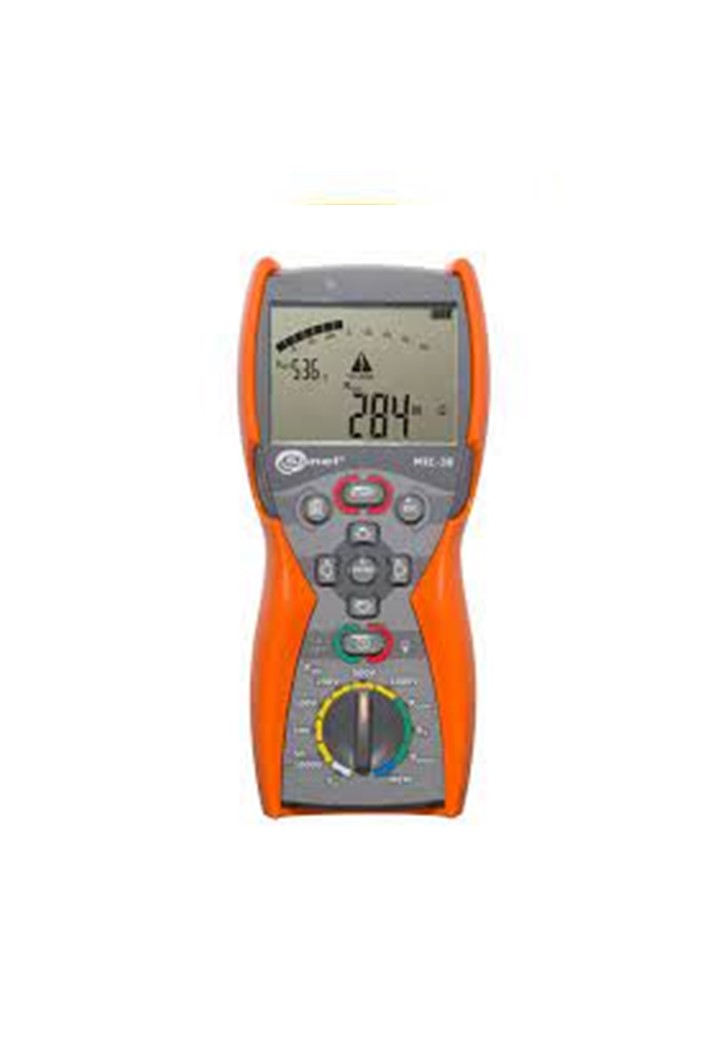

SONEL รุ่น MIC-30 เครื่องทดสอบความเป็นฉนวนทางไฟฟ้าแบบมือถือระดังแรงดัน 1000V

คลิ๊กที่นี่ชมคลิปนำเสนอผลิตภัณฑ์

คลิ๊กที่นี่ชมคลิปการทดสอบ



Description

The MIC-30 is a hand-held, rugged, easy-to-use, 1 kV class insulation test meter.  The MIC-30 has a wide measurement range, selectable test voltages, and excellent safety features.

Insulation resistance measurement to 100 GΩ

User selected test voltages: 50, 100, 250, 500, 1000 V in 10 V steps

Displays continuous indication of insulation resistance or leakage current

Audio beeps every five-second periods to indicate measurement progress

Indication of actual test voltage during the measurement

Three-lead measurement

Continuity measurement of protective and equipotential conductors according to EN 61557-4

Low-voltage circuit continuity and resistance measurement:

Circuit resistance measurement (<1999 Ω)

Audio alert signal if circuit resistance is below 30 Ω

Capacitance measurement during measurement

Measurement of alternating and direct voltages from 0 to 600 V

Automatic measurement in sockets with the UNI-Schuko adapter with possibility of configuring pairs of measured cable

Selectable test times (T1, T2 , T3 from 1 to 600 seconds) to measure one or two absorption coefficients

Meter conforms to EN 61557

Safety First Features.

Automatic discharge of tested object after the insulation resistance measurement completes to remove high voltage charge remaining due to cable capacitance

Protection against measuring live objects, measurement will not proceed

Power Supply 4 AA disposable or rechargeable batteries

Continuous indication of state of battery charge

Memory Features
