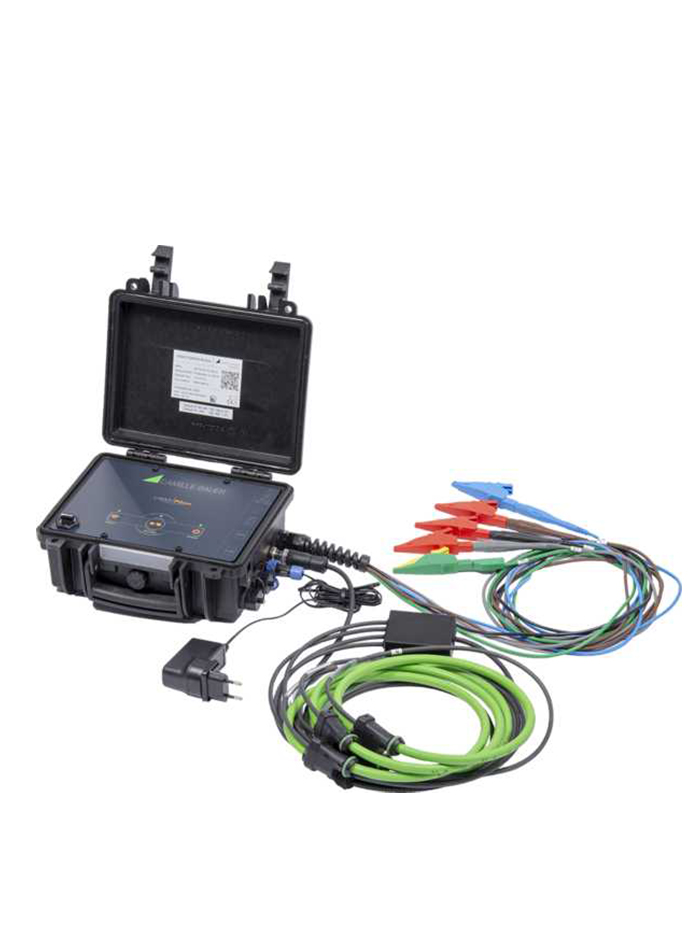

GOSSEN METRAWATT PQ5000-Mobile เครื่องวัดค่ากำลังไฟฟ้า

The new LINAX PQ5000 Mobile power disturbance analyzer unites proven technology with highly precise measurement, innovative functions and revolutionary communication options. Disturbances can be detected extremely quickly, pinpointed and documented in accordance with the standards (IEC 61000-4-30, edition 3.0, class A). At the same time, statistical evaluations can be generated directly by the measuring instrument via the integrated web server using the innovative PQ-easy report function which has recently become available. The reports are aligned to standards including EN 50160, IEC 61000-2-2, IEC 61000-2-4 and IEC 610002-12, as well as GB/T (China) and IEEE519, and can be accessed cost-effectively without external software. Individual limit value standards can also be entered and selected.

Product Highlights

Integrated Wi-Fi

Lockable, water-proof case

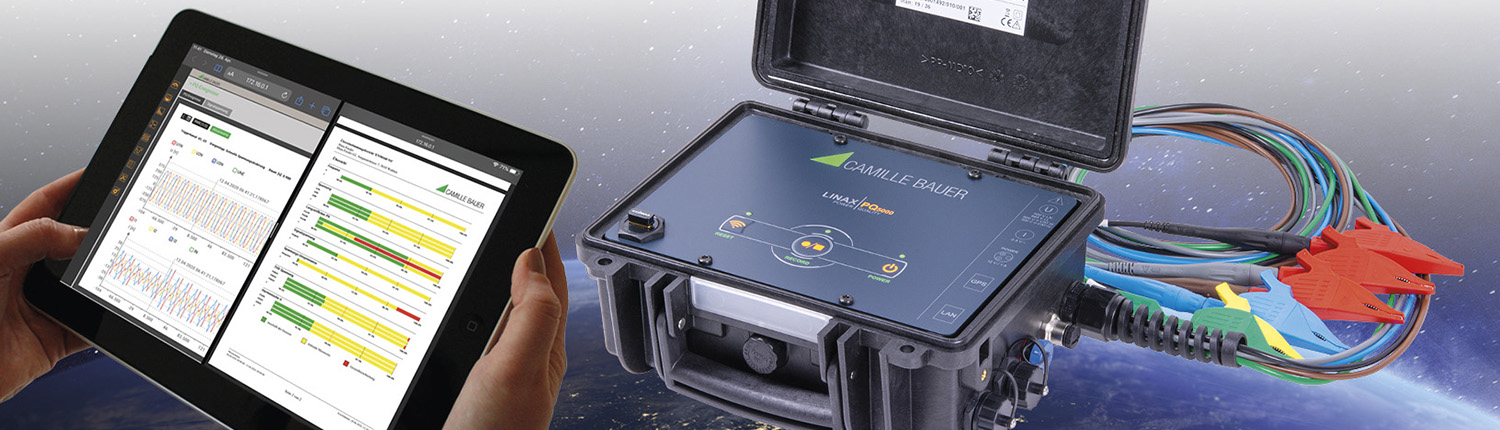

Simple, device-independent initial start-up and configuration via web browser

No additional software required thanks to integrated power quality reporting function (PQEasy Report)

Your advantages

Certified Power Analysis

Independent certification by the Swiss Federal Institute of Metrology, device type PQI-A FI2 in accordance with IEC 62586-1

Tested at 230 V / 50 Hz and 120 V / 60 Hz

Class F1 flicker meter

Marking concept: multi-phase approach in accordance with IEC 61000-4-30

Thanks to certification in accordance with IEC 62586-2 (standard for verifying compliance with IEC 61000-4-30), the instrument can be used as a reliable and comparable source of information for regulatory authorities, for negotiations with power utilities and for internal quality control.

Applications

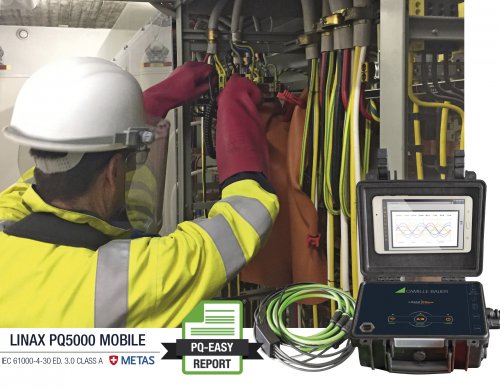

Portable analyzers are the right choice wherever data concerning power quality, power and energy need to be simply and accurately ascertained. The instrument detects changes in the monitored electrical circuit: voltage dips and swells, overvoltage, harmonics and flicker based on internationally recognized industry standards such as EN 50160, IEC 61000-2-2, IEC 61000-2-4 and IEC 610002-12, as well as GB/T (China) and IEEE 519. Ethernet and Wi-Fi interfaces are available for remote use in safety-critical environments, via which the instrument can be operated directly from a web browser at a cell phone, tablet or laptop.

Monitoring options and benefits:

Statistical evaluation (power quality)

Disturbance logging (power availability)

Evaluation of changes / measures for improvement

Acquirement of load profiles, short-term load peaks and meter readings
