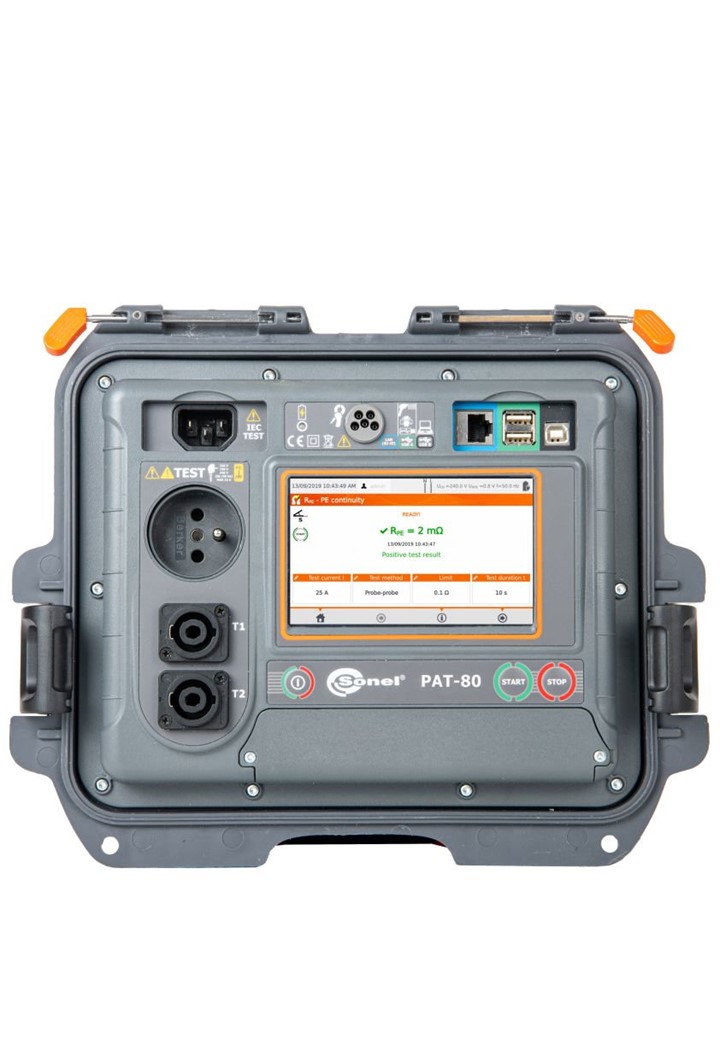

SONEL PAT-80 เครื่องทดสอบความปลอดภัยของเครื่องใช้ไฟฟ้า

Safety guardian on the post.

PAT-80 is used wherever safety is the most important thing. Ideally suited to situations where it is necessary to check welders, power tools, three-phase devices and household appliances

Extensive measuring system enables:

• protective conductor resistance measurement using current: 200 mA,

•  measurement of insulation resistance using voltage: 250 V, 500 V,

• measurement of substitute, differential and touch leakage current,

• functional test,

• test of RCD and PRCD switches,

Much more:

• Intuitive user interface.
• Cooperation with a label printer and QR code scanner.
• Robust, compact housing.
• Operation time at rechargeable battery power supply: up to 1 hour..

Capabilities

Thanks to the extensive measuring part, the device enables comprehensive checking of electrical devices. The touch screen and autoprocedures section make testing quick and efficient.

The meter cooperates with a label printer and QR scanner, which greatly facilitates the recordkeeping of tools. The following printouts are available:

• initial measurement report,
• QR code, where information on performed tests and the parameters of the tested device are saved.

These data can be read and added to the meter memory using the optional QR code scanner.

The whole picture is complemented by a compact and durable housing. It provides instrument protection during both measurements and transport.

Memory

The memory has a tree structure. For each device tested it contains its description, location of measurements, customer data and registration number.

Communication

The meter provides many modes of transmission of measurement results: via USB, LAN and WiFi. In addition, it is possible to upload the results to a USB stick.

Dedicated PAT Analysis software allows for data management and also reports preparation - in several versions, depending on the user’s needs. In addition, it is possible to use the PAT Server solution. This system allows you to work in many modes, including:

• smooth data management,
• online upload to server, • work through a web browser,
• work in task ordering mode,
• storing copies of data on the server.
