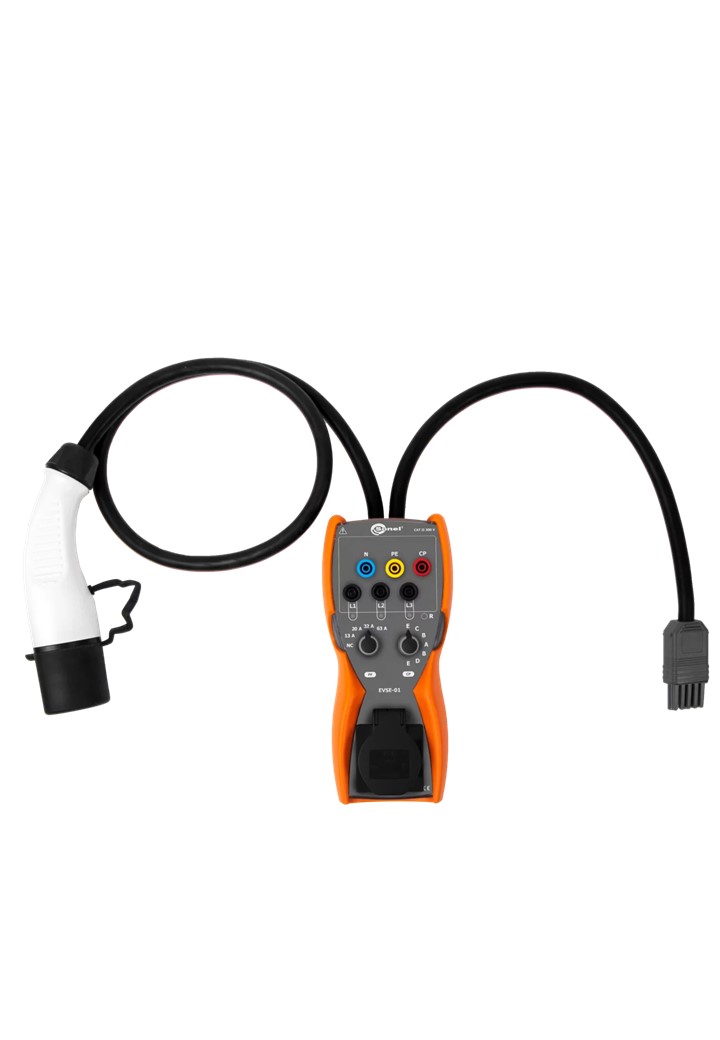

SONEL EVSE-01 อแดปเตอร์สำหรับเชื่อมกับสถานีชาร์จรถยนต์ไฟฟ้า (AC TYPE II ADAPTER)

Quick and full diagnostics of charging stations

EVSE-01 adapter allows to perform comprehensive measurements of electric vehicle charging stations - quickly and in accordance with applicable regulations. Simulating the charging cable (proximity pilot line - PP) and vehicle connection status (control pilot line - CP), it will bring the station into different operating states. This will enable measurements in the field of electric shock protection: Z_S fault loop impedance, R_ISO insulation resistance and checking the parameters of RCD residual current devices.

To facilitate diagnostics, one of the EVSE-01 sockets is provided with pulse width modulation signal (PWM).

Application

The EVSE-01 adapter enables measurements of AC electric vehicle charging stations with type 2 connector. Tests for 1-phase and 3-phase stations are available - both with and without ventilation.

คลิ๊กที่นีชมวีดีโอสาธิตการใช้เครื่อง
