FOTRIC V5 กล้องถ่ายภาพความร้อน 384x288 pixels ย่านวัดอุณหภูมิ -20℃ to 1550℃, Frame rate 30 Hz

30mk(0.03° C)@30° C

-20 ° C ~ 120° C,

0 ° C ~ 650° C,

300-1550° C

TurboFocus® system for continuous, laser-assisted, thermal contrast AF; Manual focus

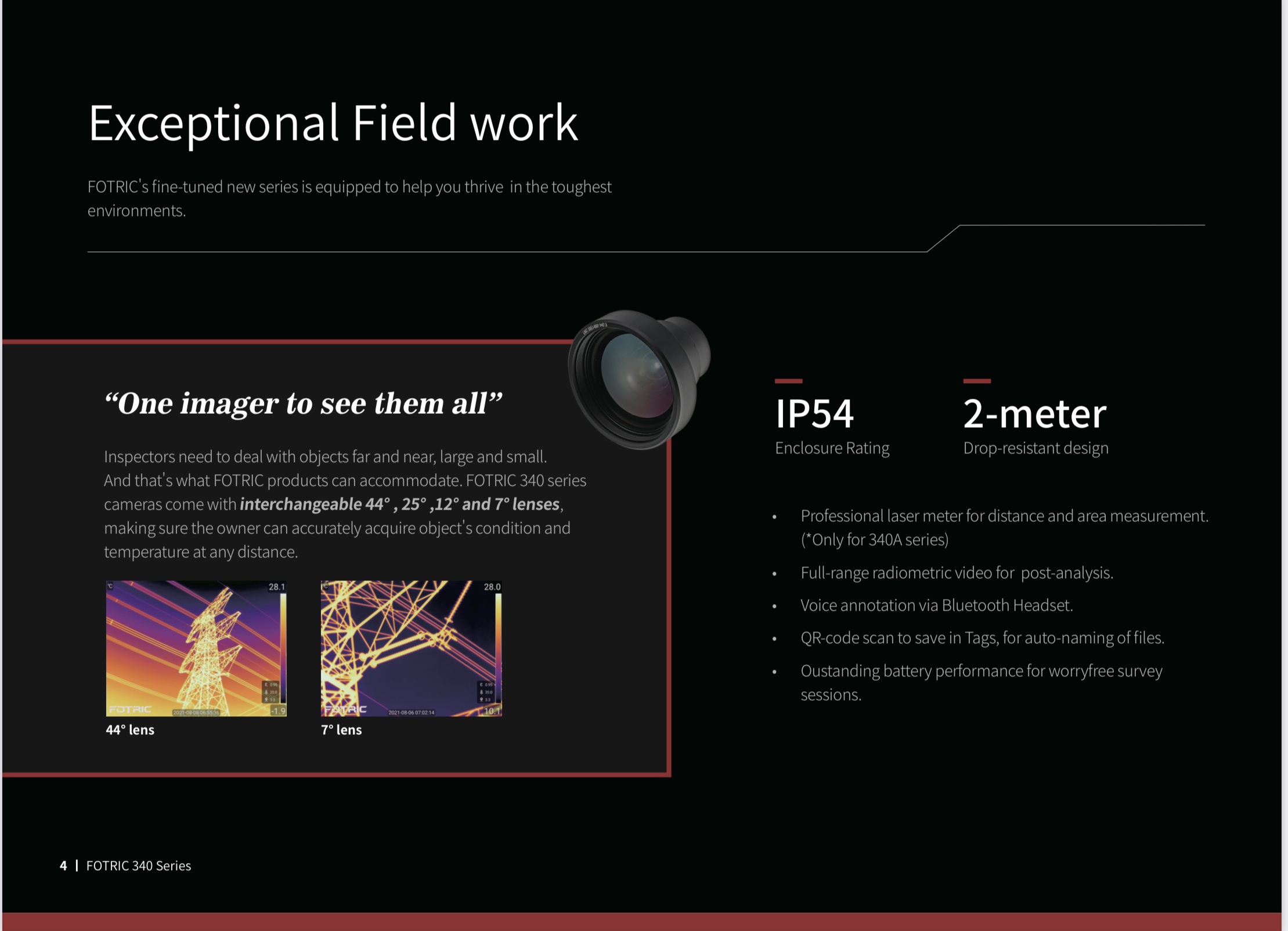

Standard 25° x 19°


Wide-angle 44° x 34°,

Telephoto 12° x 9°,

Ultra Telephoto 7° ×5°

Unique Features

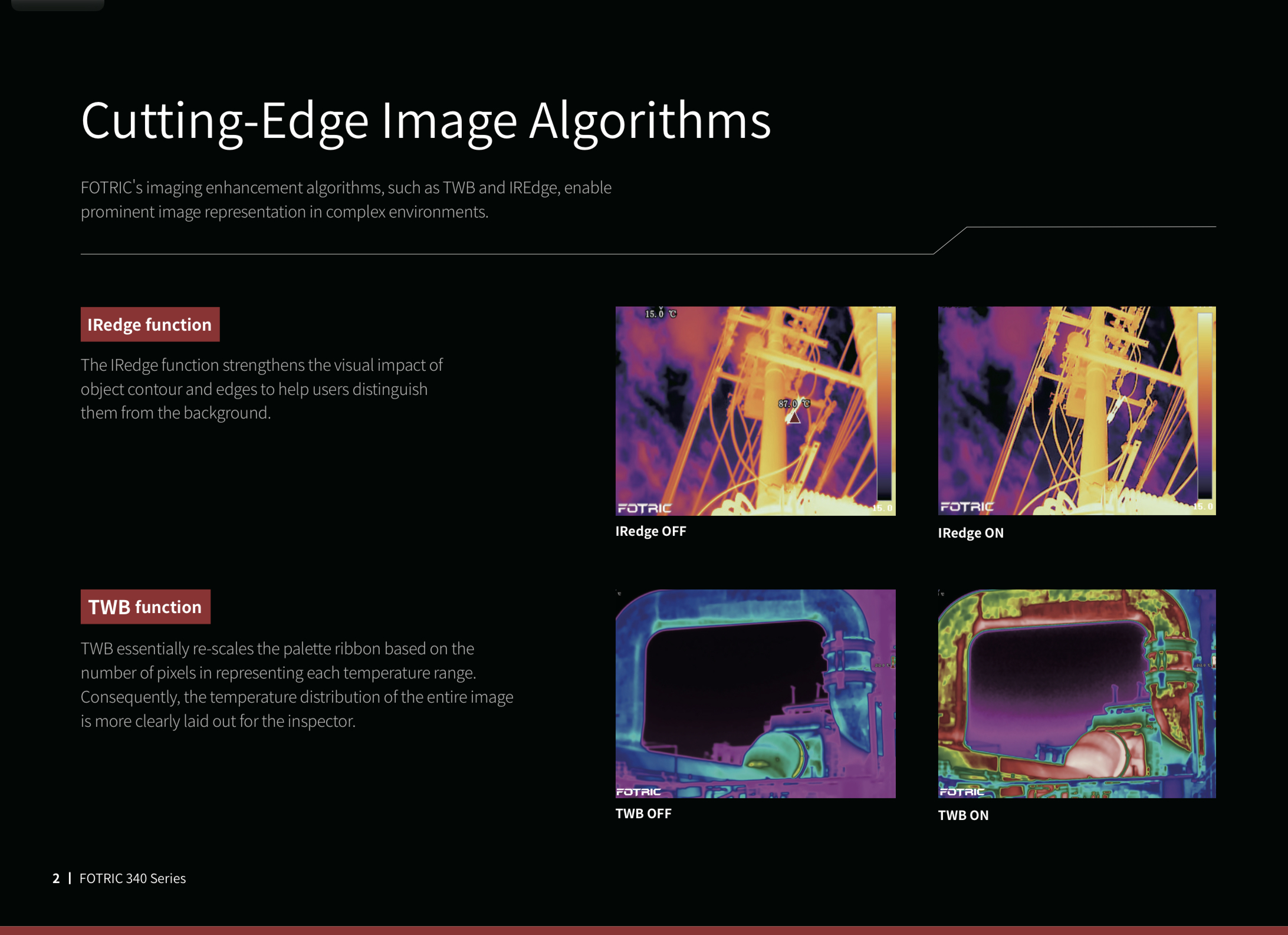

NaviPdM®, T-DEF®, IREdge, T-TWB®

Accuracy

± 2℃ or ± 2 %, whichever is greater, (ambient temp at 25℃ )

Storage Card

Micro SD card, 128G, expandable up to 1TB

Video Recording

Radiometric thermal video(IRS.) and MP4 video recording (non-radiometric).

On-device Analysis

Support (Radiometric Image and Video Data)

QR Code Functionality

Support QR code and Barcode scanning

Annotation

Support Voice\Text\Tag\Favorite

Digital Camera

13MP industrial grade camera

16 standard palettes: Grey, Iron10, Iron, Rainbow, Grey10, GreyRed, MidGrey, Yellow, Rain, Rain10, Blue, GlowBow, Medical, Medical10, MidGreen, Prism.

Radiometric thermal photo (JPEG.), thermal video (IRS.) and non-radiometric digital camera photo, MP4 video

Remote Display

Support Radiometric IR Video Streaming over type-C 3.0 interface; non-radiometric IR video streaming over HDMI interface and IRExplorer ™

Support (through AnalyzIR® and IRExplorer ™ )

Rechargeable Li-ion, 7.4V, 3500mAh

Battery Operating Time

≥ 4 hours per battery

Operation Temperature

-20° C to 50° C

Weight (include battery)

＜ 1.0kg (lens not included)

Engineered to withstand 2 meters (6.5 feet) drop with standard lens

IP54, IEC60529:2013
