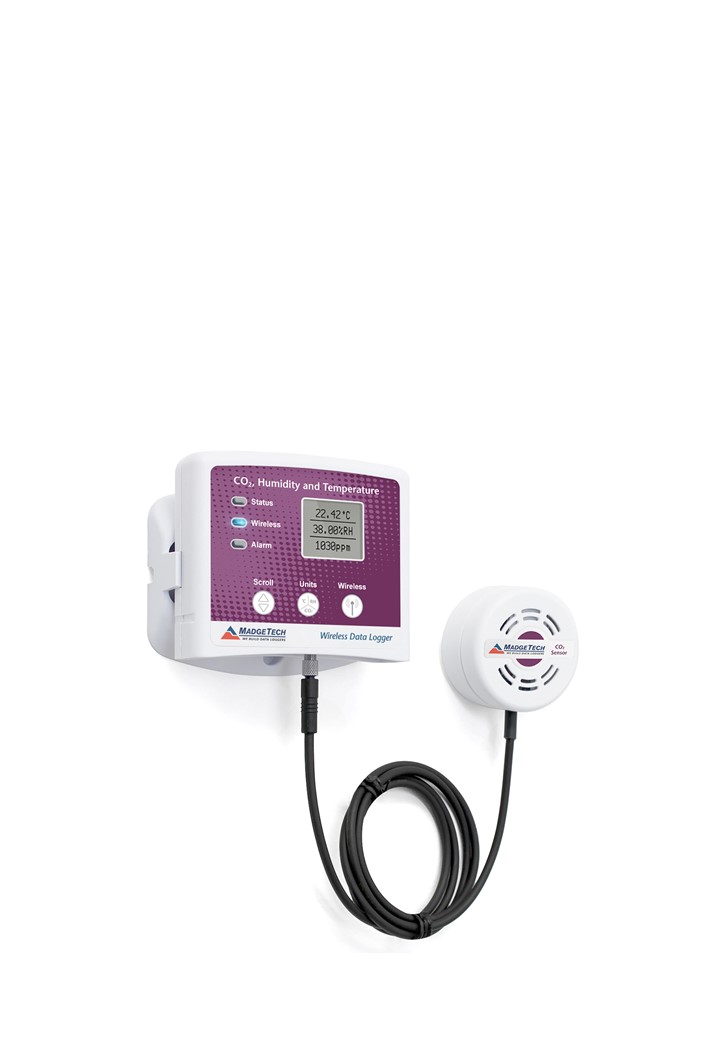

Madgetech RFCO2RHTemp2000A - Wireless CO2, Humidity and Temperature Data Logger

General

Memory 10,752 readings (all channels enabled)

Reading Rate 1 reading every second up to 1 reading every 24 hours

Baud Rate 250,000

LED Indicators Green, Blue & Red

Battery Life 16 months typical at a 10 minute reading rate

Material ABS plastic

Dimensions Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in)

IP Rating IP22

Operating Environment 0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH, 13.77 PSIA to 100 PSIA

Required Interface Package RFC1000

Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature

Internal Channel Temperature Sensor Silicon

Internal Channel Temperature Range 0 °C to +55 °C (+32 °F to +131 °F)

Internal Channel Temperature Resolution 0.08 °C (0.144 °F)

Internal Channel Temperature Calibrated Accuracy ±1.0 °C

Humidity

Humidity Sensor Silicon

Humidity Range 0 %RH to 95 %RH

Humidity Resolution 0.08 %RH

Humidity Calibrated Accuracy ±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise

Carbon Dioxide

Carbon Dioxide Range 0 ppm to 200,000 ppm

Carbon Dioxide Resolution 10 ppm

Carbon Dioxide Accuracy 70 ppm ± 5% of the reading

Wireless

RF Baud Rate 250,000

Output Power +0 dBm typical

Receiver Sensitivity -95 dBm typical

Typical outdoors Line of sight Up to 2000 ft

Typical Indoors line of sight Up to 500 ft

ต้องการข้อมูลเพิ่มเติมคลิกที่นี่เพื่อดาวน์โหลด data sheet
