Sonel UV-260 เครื่องตรวจวัดโคโรน่า (Corona Effect) การตรวจสอบการเกิด Discharge บนผิวสายไฟฟ้าแบบเดินลอย

ต้องการข้อมูลเพิ่มเติมคลิ๊กดาวน์โหลด data sheet ที่นี่


Innovative solution for the detection of UV emissions

The design with emphasis on high functionality allows detection and monitoring of corona, arc and surface discharges in the power industry. It is a method for ongoing analysis of the technical condition of equipment, for example HV lines, and for locating problems before damage or major breakdowns occur.

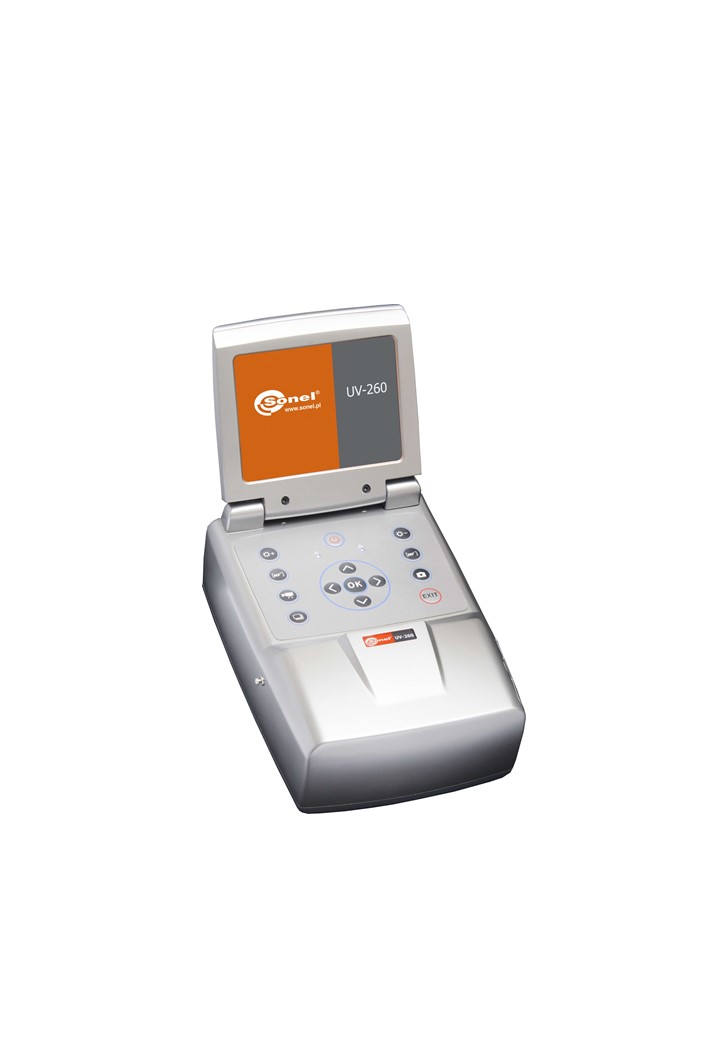

UV-260 is a high-end, professional, yet lightweight and intuitive device, allowing for simple and fast remote diagnosis of installations without the need to interfere with their operation. Due to its latest generation imaging system and highly sensitive UV detector, the product allows events to be observed and recorded under both visible and UV light. In addition, images can be saved as photos or videos.

In the case of complex and extensive testing of power systems, i.e. power lines, it is a major problem to determine the potential failure area accurately. This is why Sonel has opted for a comprehensive solution. UV-260 has a built-in GPS receiver, recording the location of the photo or video taken.

Features

Precise location of discharge sources

Recording and playback of videos and images

High UV sensitivity

Automatic sharpness for UV and visible image

Automatic noise reduction

5.7” touch LCD

No sensitivity to sunlight during operation in full daylight

Additional LED alarm in the event of UV radiation detection

Built-in GPS

Software for data transmission and generating reports
