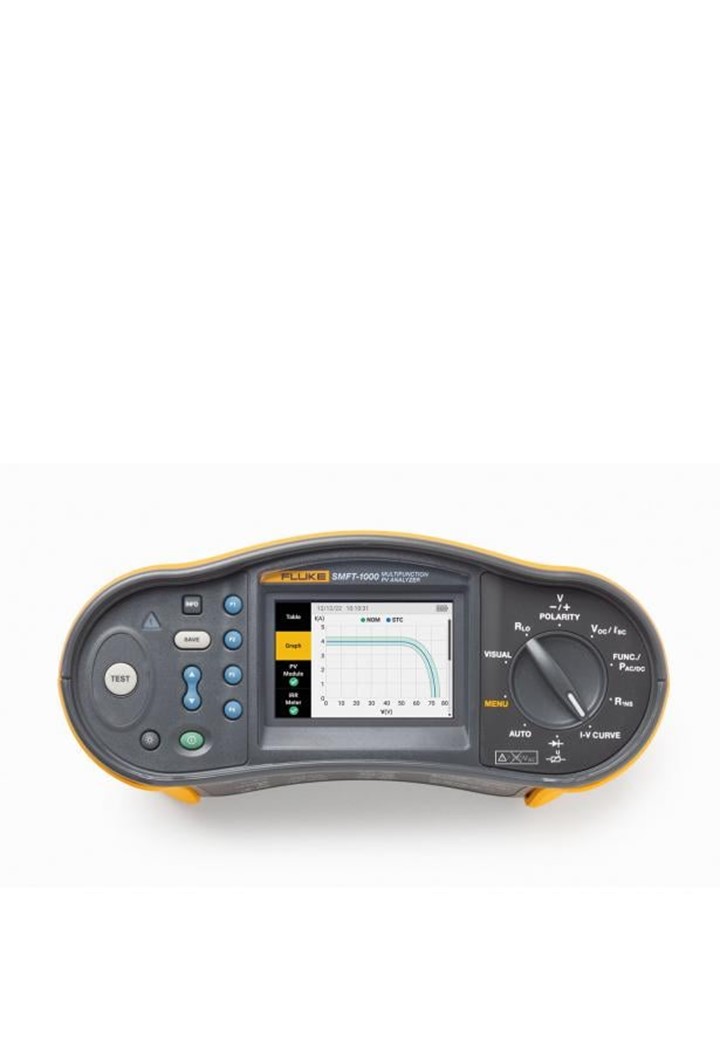

Fluke SMFT-1000-Kit เครื่องทดสอบระบบโซลาร์เซลล์พร้อมฟังก์ชั่น IV-CURVE Tracer ที่ระดับ 1000V@20A

Fluke SMFT-1000 Solar Tools Kit: Fluke Multifunction PV Tester and Performance Analyzer, I-V Curve Tracer

Package includes SMFT-1000 Multifunction PV Analyzer, IRR2-BT Solar Irradiance Meter Pro, i100 AC/DC Current Clamp, Test Probes, Test Leads, Backpack, Coupler Sets

All-in-one test solution to verify PV system performance and safety

Full sequence safety testing – IEC 62446-1 Category 1 and System performance testing – IEC 62446-1 Category 2

IRR2-BT Wireless irradiance meter communicates real time irradiance and temperature data for accurate I-V curve measurements

3-year warranty for hardware, 90 days for software

Compatible with Fluke TruTest solar data management and reporting software

Protective conductor resistance RLO measuring range: 0.2 O – 2000 O

PV module/PV string, open-circuit voltage (VoC) measuring range: 5 V – 1000 V

Color Screen with integrated interface provides on-screen instructions

Automatic test Mode to perform automatic sequence of tests in a variety of combinations

คลิ๊กที่นี่ดูคลิปเครื่องทดสอบ Fluke SMFT-1000

Key features

All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests

Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC

Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC

On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen

Compatible with Fluke TruTest™ data management software

Critical testing features for periodic inspection of PV systems

Full sequence safety testing – IEC 62446-1 Category 1:

• Protective resistance earth (Rpe)
• Voltage on open circuit (Voc)
• Short circuit current (Isc)
• Insulation resistance (Rins)
• Polarity

ROI and system performance testing – IEC 62446-1 Category 2:

• I-V Curve tracing and software analysis with TruTest
• Irradiance, temperature, tilt, cardinal direction


• Fluke SMFT-1000-BP Professional Tool Backpack
• SMFT-1000 Multifunction PV Analyzer
• Carry Strap
• Fuse Pack
• Adapter Cable IRDA Optical-to-USB
• Zero Adapter
• IRR2-BT Wireless Solar Irradiance Meter Pro
• 80PR-IRR External Temperature Probe
• Mounting Bracket for solar panel
• Carry Case
• i100 AC/DC Current Clamp 100 A
• TPAK Magnet Set
• TP1000 Test Probe with Remote Test Button
• TL1000 Test Lead Set
• TL1000-MC4 Test Lead Set
• TL1000/30M Test Lead on Reel
• Coupler set
• (6) AA Batteries
• Manuals/Guide
