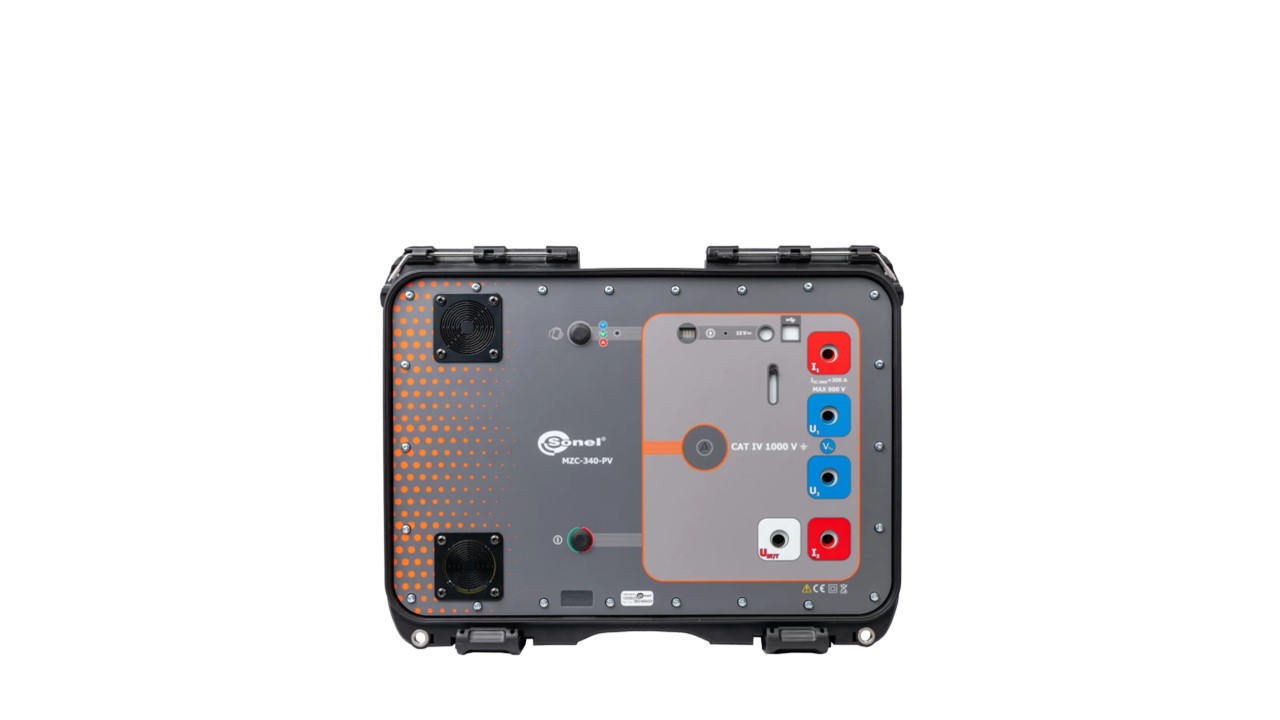

Sonel MZC-340-PV Photo Volataic High-current fault loop impedance meter 900V & 400A

คลิ๊กที่ภาพเพื่อชมคลิปแนะนำผลิตภัณฑ์


ออกแบบมาสำหรับวัดแรงดันไฟฟ้า 900 V ในงานติดตั้งและงานซ่อมบำรุงระบบโซลาร์

Capabilities

Measurement of very low short circuit loop impedances (with resolution 0.1 mΩ) with a current of 130 A at 230 V; maximum 305 A at 550 V AC and 250 A at 900 V AC.

Measurements in installations with rated voltages: 220/380 V, 230/400 V, 240/415 V, 290/500 V, 400/690 V, 460/800 V (from 200 V up to 900 V) and frequencies 45...65 Hz.

Ability to perform measurements in short circuit system: phase-phase, phase-PE, phase-N.

Differentiation between the phase voltage and the inter-phase voltage while calculating the short circuit current.

4p (four-pole) method, test leads do not require calibration (measurement with current up to 305 A).

Measurement of resistance (RS) and reactance (XS) components.

Additional features

Remote control.

Touch voltage and touch shock voltage measurement with resistor 1 kΩ).

AC voltage measurement in range 0...900 V.

Frequency measurement 45.0...65.0 Hz.

Memory of 990 measurement results, data transmission via USB and Wi-Fi.

Power supply: rechargeable battery.
