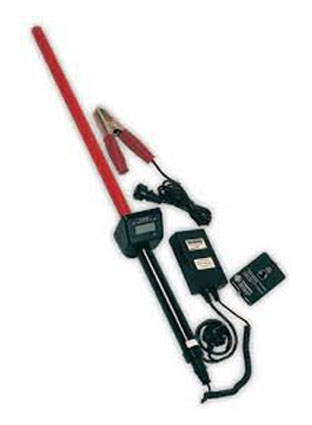

KD1E/33D โพรบวัดไฟสูงระดับ 33 kV แสดงผลแบบดิจิตอล

Neon Indicators

Digital Indicators

KD1E

KD1E/19

KD1E/19S

KD1E/22

KD1E/33

KD1E/15D

KD1E/33D

Maximum System Voltage

11kV

19kV

19kV

22kV

33kV

15kV

33kV

Maximum Voltage to Earth

6.6kV

11kV

11kV

12.5kV

19kV

8.6kV

19kV

Threshold Voltage

300V

300V

300V

300V

300V

Measuring Range

0.00kV-8.6kV

0.00kV-19.0kV

Resolution

10V

100V

Sensitivity

AC/DC

AC/DC

AC Only

AC/DC

AC/DC

AC/DC

AC/DC

Circuit Current
(IEC 61234-2)

2.3mA nominal
@ 6.6kV

0.7mA nominal
@ 11kV

0.9mA nominal
@ 11kV

3.5mA nominal
@ 12.5kV

1.1mA nominal
@ 19kV

0.5mA nominal
@ 8.6kV

1.1mA nominal
@ 19kV

Dielectric Leakage Current
(IEC 61234-2)

7µA nominal
@ 13.8kV

11µA nominal
@ 22.8kV

12µA nominal
@ 22.8kV

12µA nominal
@ 26.4k

17µA nominal
@ 40kV

9µA nominal
@ 18kV

17µA nomina
@ 40kV

Length (mm)

330

330

330

665

670

600

600

Diameter (mm)

25

25

25

25

25

25

25

Handle Length (mm)

105

105

105

90

250

235

235

Hand Guard Height (mm)

105

105

105

90

250

235

235

Contact Electrode Type

Domed

Flat

Flat

Domed

Flat

Domed

Domed
