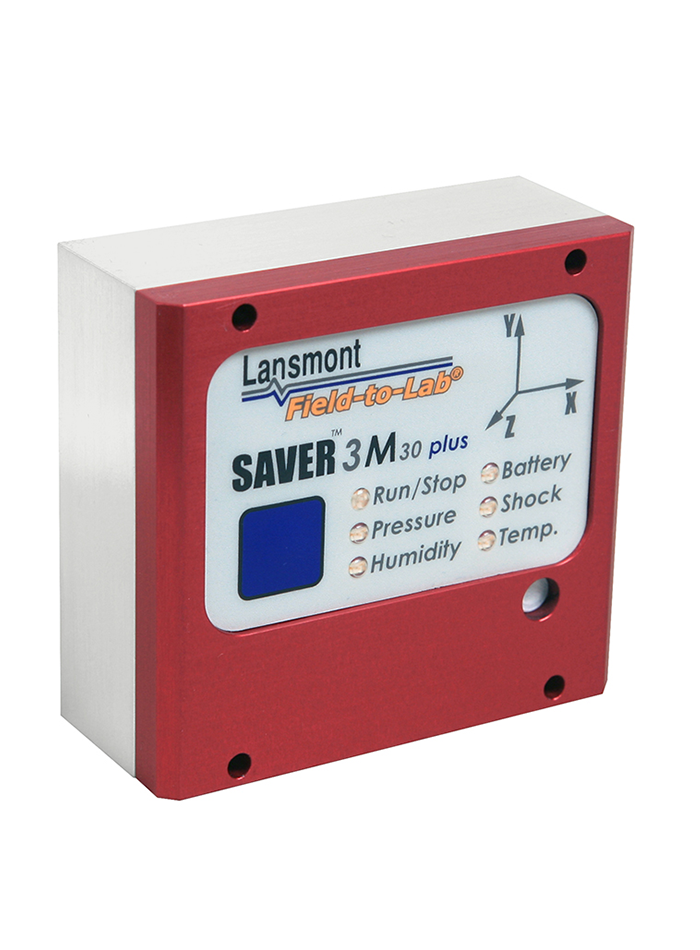

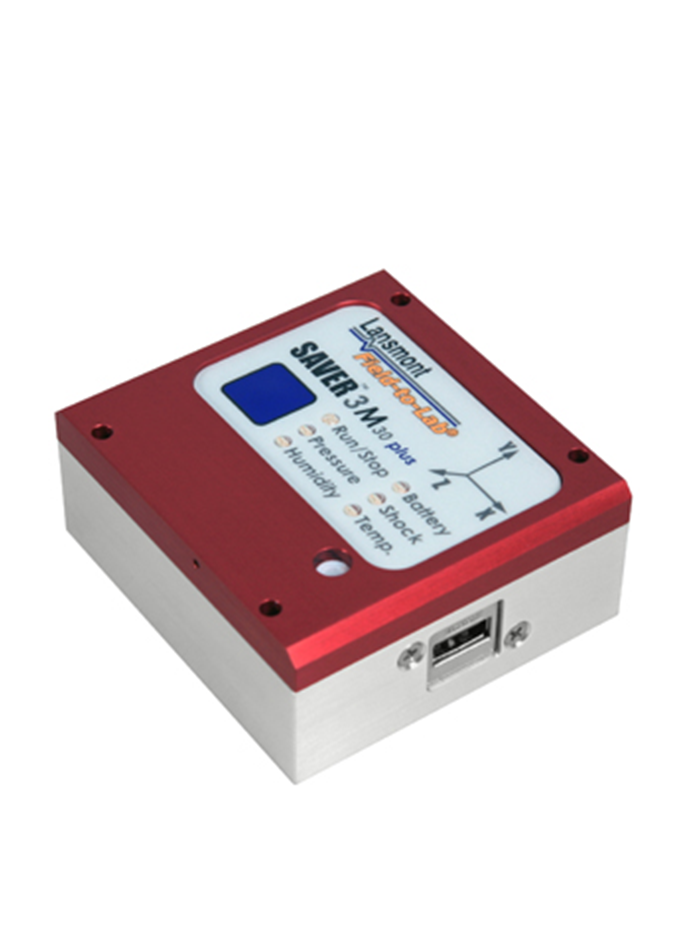

SAVER 3M30 PLUS เครื่องบันทึกข้อมูลการขนส่งสินค้า

SAVER 3M30 PLUS

Product Features

§  Full waveform data recorder

§  User-programmable trigger threshold

§  User-defined pre-trigger recording (so you know what happened before the event took place)

§  30-day continuous event recorder

§  LED shock alarm indicator

§  Push button, delayed start or instantaneous activation

§  USB connectivity for communication and instrument power

§  Rechargeable batteries

§  Utilizes SaverXware Software for setup, communication and data analysis

§  Small size and footprint

Product Specification Highlights

§  Envelope Size: 3.1 x 2.9 x 1.3 in. (79 x 74 x 33 mm)

§  Weight: 14.0 oz. (397 grams)

§  Acceleration Range: 100g (full scale)

§  Accelerometer Type: Triaxial piezoelectric

§  Sampling Rates: 100, 200, 500, 1000, and 2500 samples per second

§  A/D Conversion: 12-bit

§  Anti-Alias Filter: 3-pole, low pass filter 10, 20, 50, 100 and 250 Hz

§  3-dB Frequency Response: 0.5 Hz to filter setting

§  Temperature Measurement Range:  -20° to 60°C (-4° to 140°F)

§  Humidity Measurement Range: 5% to 95% RH, non-condensing

§  Atmospheric Pressure Measurement Range: 10 to 1100 mbar


ดาวโหลด Data sheet คลิ๊กตรงนี้
