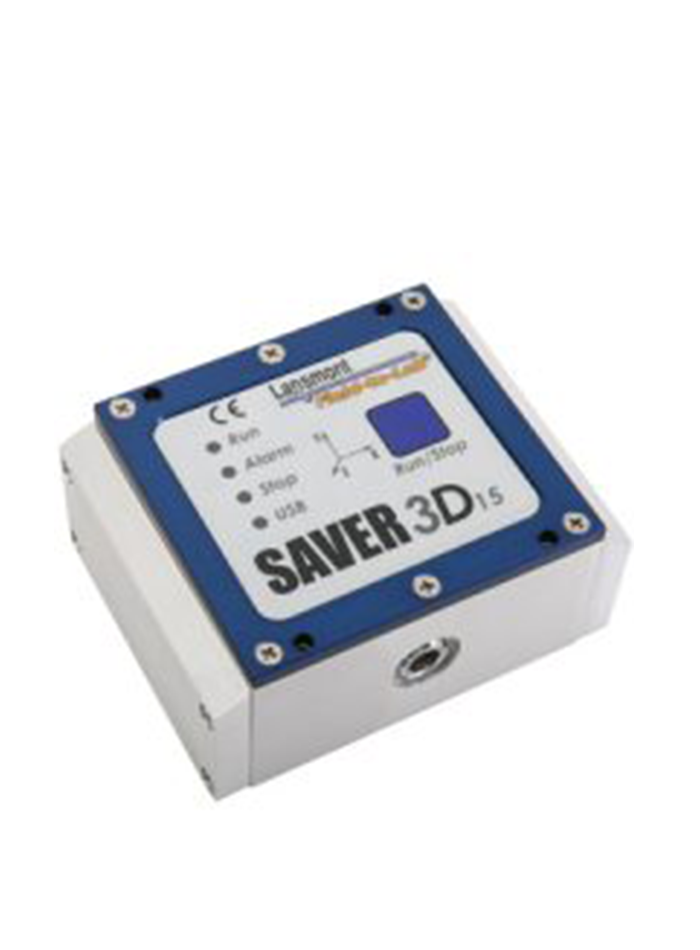

SAVER 3D15 เครื่องบันทึกข้อมูลการขนส่งสินค้า

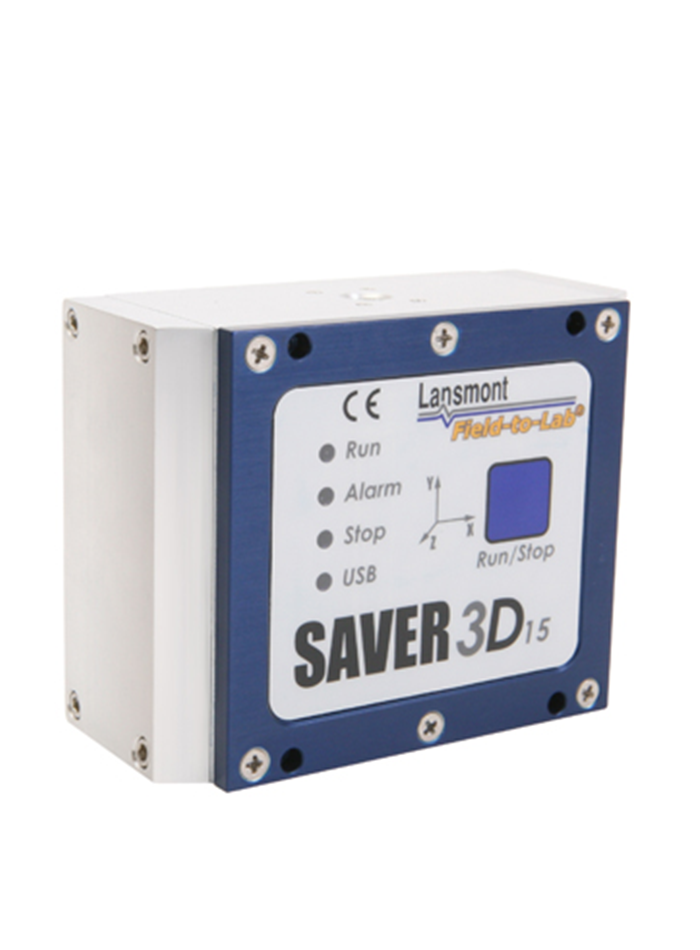

SAVER 3D15

Product Features

§  Full waveform data recorder

§  User-programmable trigger threshold

§  User-defined pre-trigger recording

§  MEMS technology accelerometers with DC response measurement capability

§  15-day continuous event recorder

§  LED shock alarm indicator

§  Push button, delayed start or instantaneous activation

§  USB connectivity for communication and instrument power

§  Utilizes SaverXware Software for setup, communication and data analysis

§  Small size and footprint

Product Specification Highlights

§  Envelope Size:  3.7 x 2.9 x 1.7 in. (95 x 74 x 43 mm)

§  Weight:  16.7 oz. (473 grams)

§  Acceleration Ranges:  5, 10, 20, 50 g (full scale)

§  Accelerometer Type:  Triaxial MEMS

§  Sampling Rates:  50, 100, 200, 250, 500, 1000, 2500, and 5000 samples per second

§  A/D Conversion:  16-bit

§  Anti-Alias Filter:  4-pole, low-pass Butterworth filter, 10, 20, 25, 50, 100, 200, 250 and 500 Hz. (cut-off frequency)

§  3-dB Frequency Response:  DC to filter setting

§  Temperature Measurement Range:  -40° to 60°C (-40° to 140°F)

§  Humidity Measurement Range:  5% to 95% RH, non-condensing


ดาวโหลด Data sheet คลิ๊กตรงนี้
