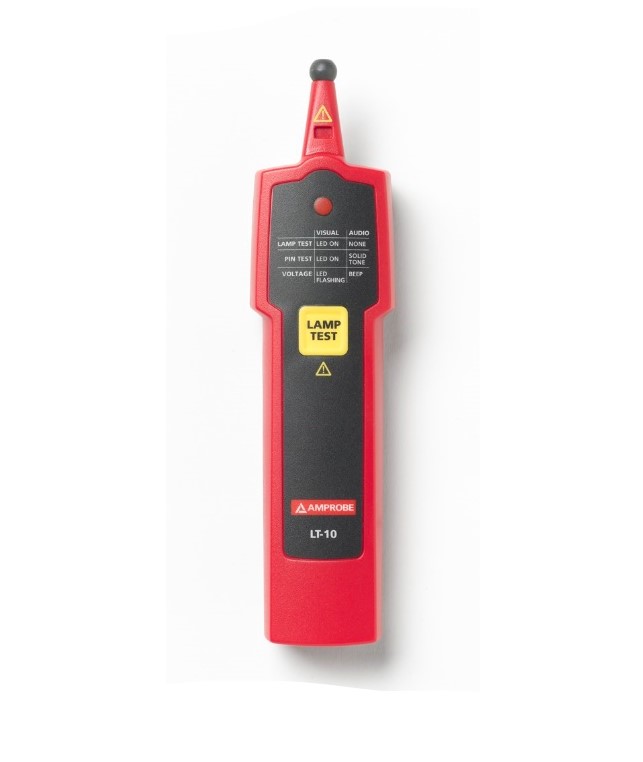

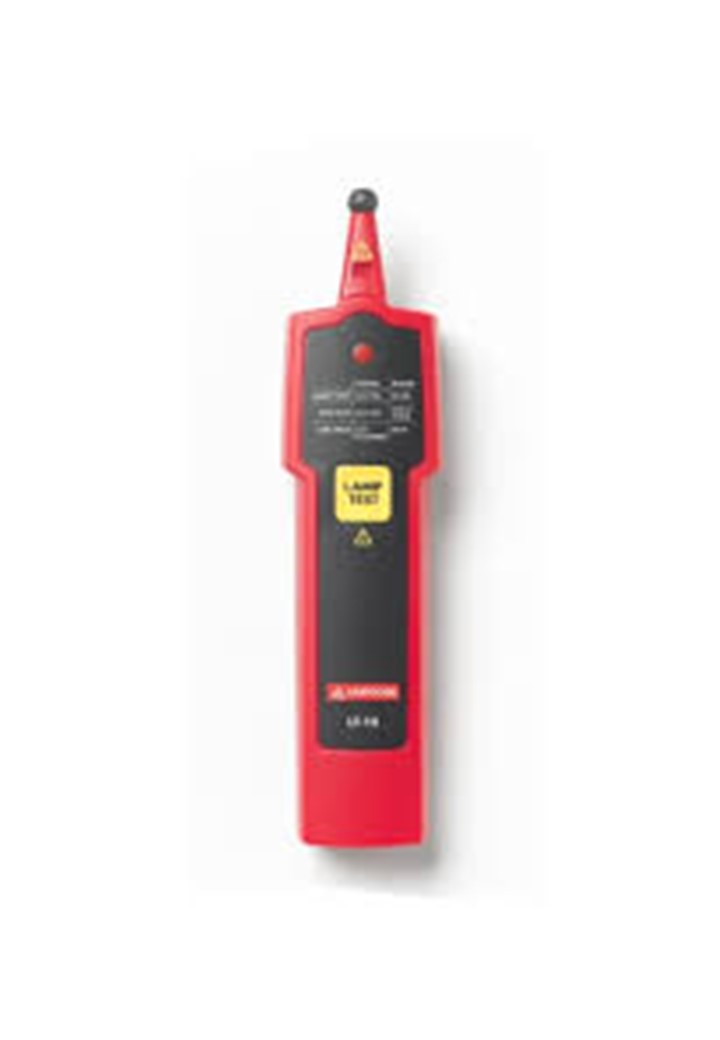

Name: AMPROBE รุ่น LT-10 เครื่องทดสอบหลอดฟลูออเรสเซนต์ Lamp Tester
SKU: SKU-00547
Price: 7250 THB
Availability: PreOrder

LT-10 เครื่องทดสอบหลอดฟลูออเรสเซนต์ Lamp Tester

คุณสมบัติเด่น

Tests whether fluorescent lamps and light bulbs are operational prior to installation or removal

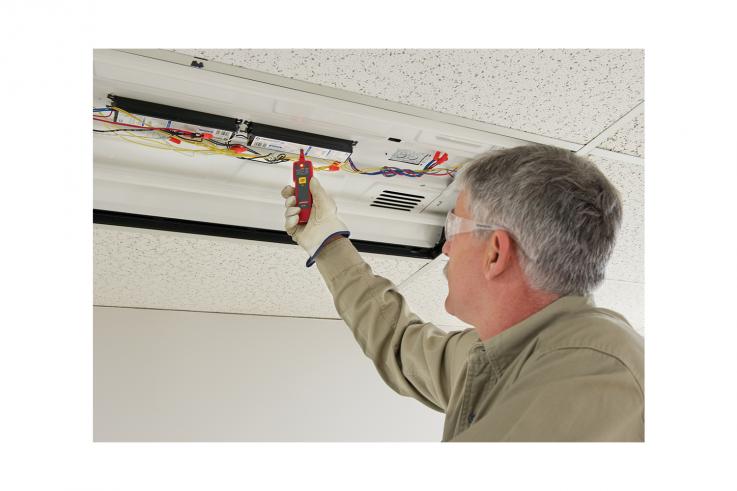

Features built-in VolTect alert to verify voltage presence and eliminate the need to carry a separate voltage detector
Offers single-handed, one-button operation for all lamp tests
Provides a pin test to check the continuity of the bulb’s electrodes
Features ultra-compact design for easy portability

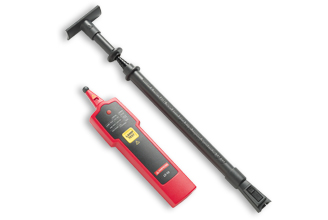

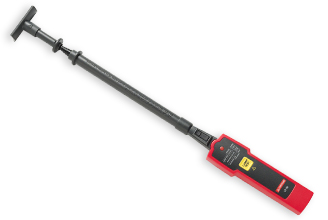

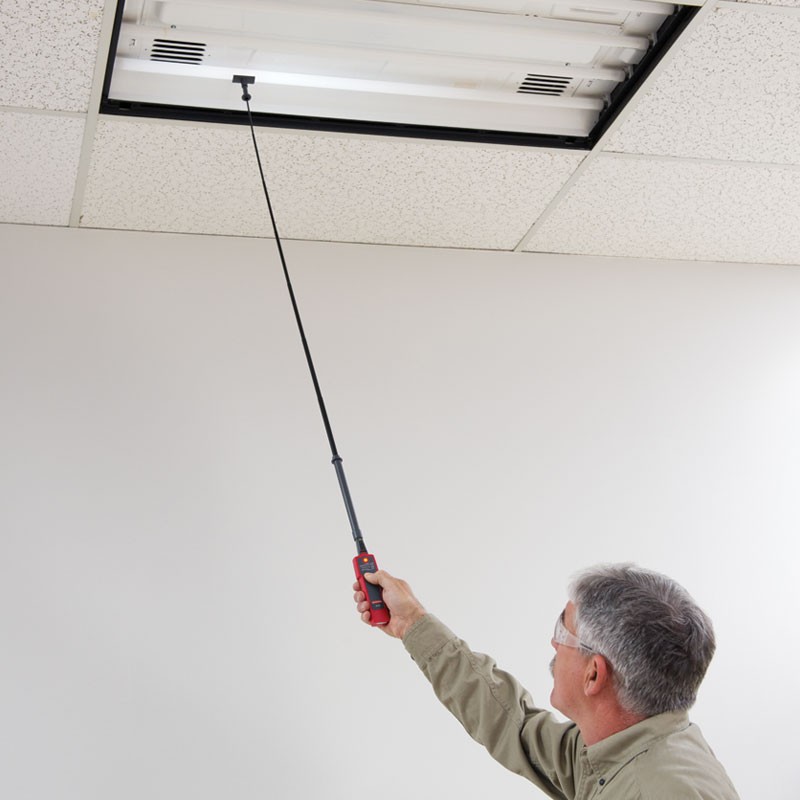

Includes a 48 removable, fully retractable antenna to test lights without climbing a ladder
Emits visual and audible alerts for pin and voltage test functions
Works with all fluorescent light bulbs: T2, T4, T5, T8, T9, T10, T12
Includes 48 antenna, adaptor plate, users manual, battery and carrying case

Specifications
Compatible lamps	T2, T4, T5, T8, T9, T10, T12 and fluorescent energy saving light bulbs
Test voltage	Approximately 3 kV / 280 kHz
Field strength	Approximately 100 μV/m at 260 - 300 kHz
Maximum antenna length	48"
Filament test	T2, T4, T5, T8, T9, T10, T12
VolTect™ non-contact voltage detection	AC 90 V to AC 600 V, 50/60 Hz CAT II 300 V, CAT I 600 V
Supplied with	48" antenna, adaptor plate, users manual, battery and carrying case

Specifications	Range
Compatible lamps	T2, T4, T5, T8, T9, T10, T12 and fluorescent energy saving light bulbs
Test voltage	Approximately 3 kV / 280 kHz
Field strength	Approximately 100 μV/m at 260 - 300 kHz
Maximum antenna length	48"
Filament test	T2, T4, T5, T8, T9, T10, T12
VolTect™ non-contact voltage detection	AC 90 V to AC 600 V, 50/60 Hz CAT II 300 V, CAT I 600 V
Non-contact voltage sensitivity with probe tip (typical)	LED illuminates and beeps at approx. 3 mm (0.12 in) distance from a wire carrying 120 Vac LED illuminates and beeps at approx. 5 mm (0.2 in) distance from a wire carrying 230 Vac
Drop proof	36"
Operating time	One second ON, one second OFF for maximum five cycles and wait for 1 minute before taking another measurement
Operating temperature	-10°C to +50°C (14°F to 122°F) ≤ 85% RH
Storage temperature	-10°C to +50°C (14°F to 122°F) ≤ 85% RH
Operating altitude	Up to 2000 meters
Battery	One 9V lithium or alkaline battery only, 6LR61/6LF22/MN1604 or equivalent.
Battery life	Up to 500 tests (Alkaline typically)
Dimensions (L x W x H)	Approximately 170 x 40 x 24 mm (6.69 x 1.57 x 0.94 in) without antenna
Weight	Approximately 80 g (0.18 lb) with battery installed, excluding 48" antenna
Safety compliance	IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04
EMC compliance	IEC 61326-1
Certification	CSA and CE
