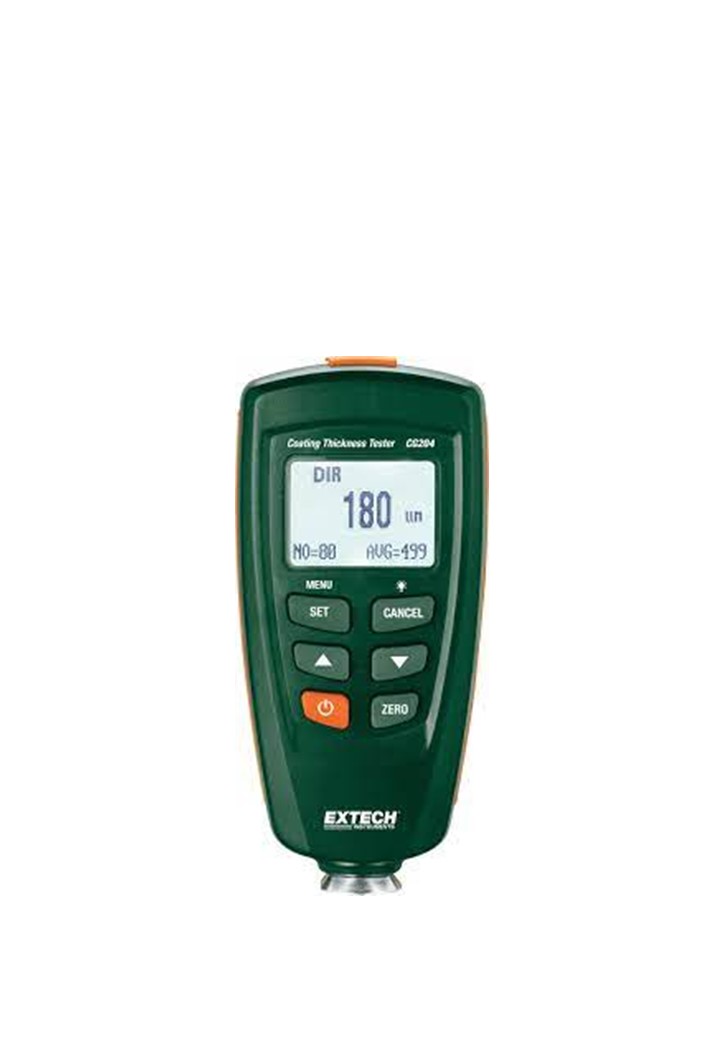

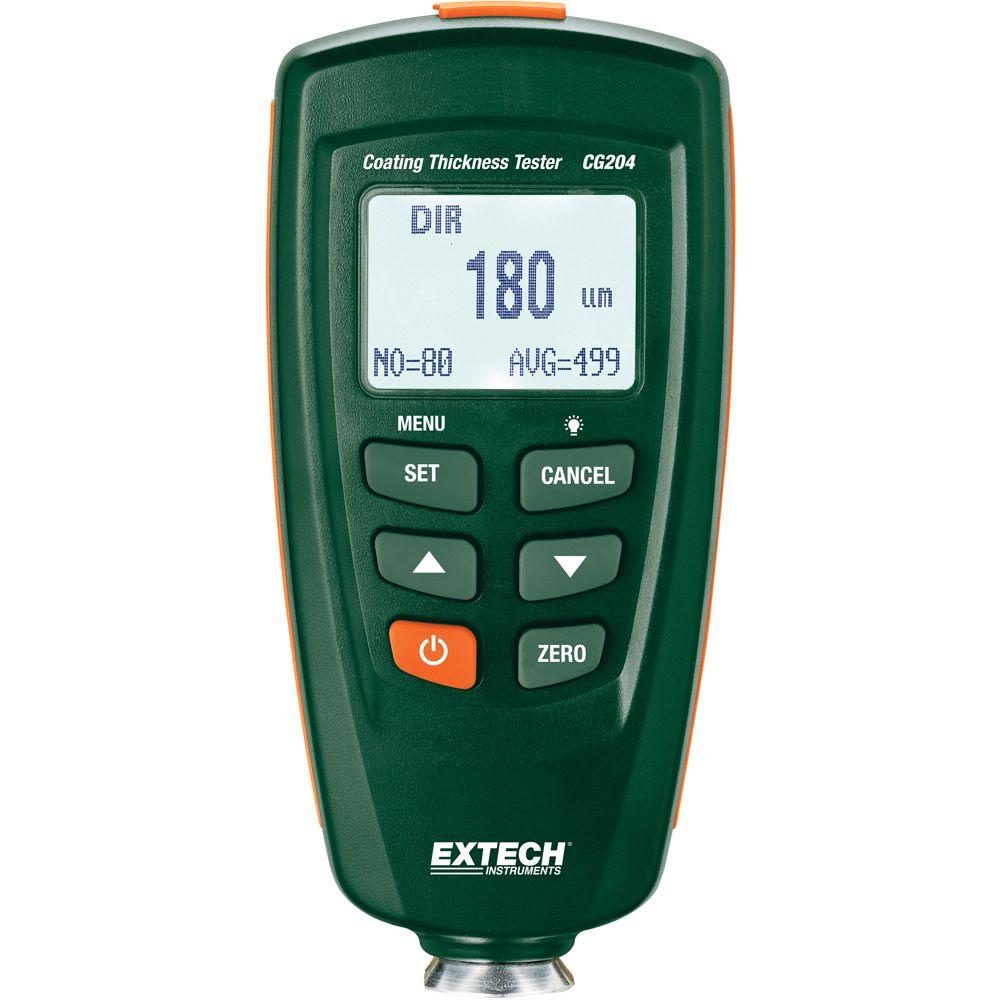

EXTECH CG204 : Coating Thickness Tester, Automatic recognition of ferrous and non-ferrous substrates

The CG204 is a portable meter designed for noninvasive coating thickness measurements. The tester uses dual technology that provides automatic recognition of ferrous (magnetic induction measurement) and non-ferrous (eddy current measurement) substrates. Featuring two measuring modes: Single and Continuous, 400 reading memory storage and user-programmable high/low alarms. Comes with two AAA batteries, USB cable, software, calibration iron, calibration aluminum, precision standards, pouch case, and user manual.

• Automatic substrate recognition
• Magnetic induction for ferrous substrates
• Eddy current measurement for non-ferrous substrates
• Easy-to use menu system
• Two measuring modes: Single and Continuous
• Two working modes: Direct and Group
• Memory stores 400 readings: 80 Direct and 320 Group
• User-programmable high/low alarms
• Min/Max/Average, one or two point calibration
• Complete with two AAA batteries, USB cable, software, Calibration Iron, Calibration Aluminum, Precision Standards, and pouch case
