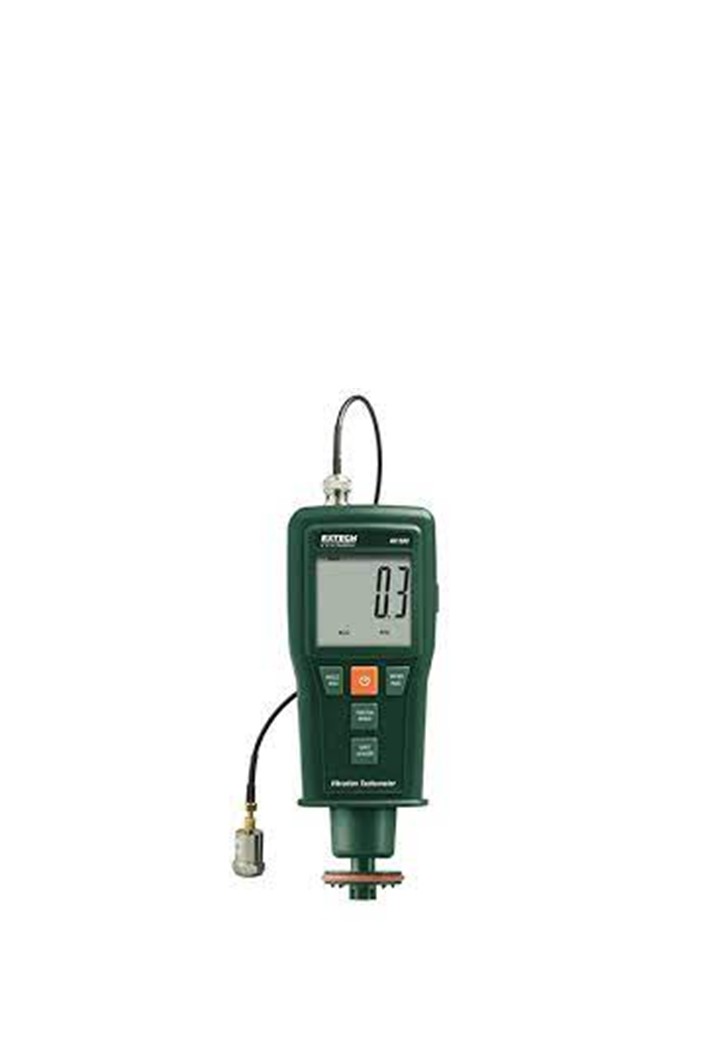

Extech 461880: Vibration Meter + Laser/Contact Tachometer

Measures Acceleration, Velocity and Displacement plus RPM and Linear Surface Speed

This Combination Vibration Meter and Laser Tachometer measures Acceleration, Velocity, Displacement plus Contact/Non-Contact RPM and Linear Surface Speed. Vibration Meter features remote sensor with magnetic adapter on 39-Inch cable, 10Hz to 1kHz frequency range, RMS or Peak value modes, and manual/auto store of up to 1000 readings. Tachometer features a laser for non-contact measurements of up to 4.9-feet, plus store/recall of last/min/max readings. Characters on the display reverse direction depending on contact, photo, or vibration mode. Meter comes complete with remote vibration sensor, magnetic mount, wheels for linear surface speed, reflective tape, 4 AA batteries, software with cable, and hard carrying case.Remote vibration sensor with magnetic adapter on 39"(1m) cable

• Wide frequency range of 10Hz to 1kHz
• RMS or Peak Value measurement modes
• Manual/Auto store/recall up to 1000 readings
• Data Hold and Auto shut-off
• Contact and Non-Contact (Laser) tachometer functions
• Uses a laser for greater distance non-contact measurements up to 4.9ft (1.5m)
• Large LCD with characters on display reverse direction depending on contact, photo, or vibration mode
• Windows® 95/98/NT/2000/XP compatible software (included) allows captured readings to be downloaded to your PC for further analysis
